About AToM

The AToM (Antenna Toolbox for MATLAB) is written entirely in MATLAB, so the user will enjoy its semi-open architecture and friendly operation through GUI or direct access to low level functions. Main simulation core is based on Method of moments, both for 3D wire and planar structures. Together with modal decomposition (Characteristic modes), the source concept, feeding synthesis and powerful optimization (FOPS optimizer), it will present unique tool for analysis and synthesis of (small) antennas. Full list of AToM features is available below.

AToM Features

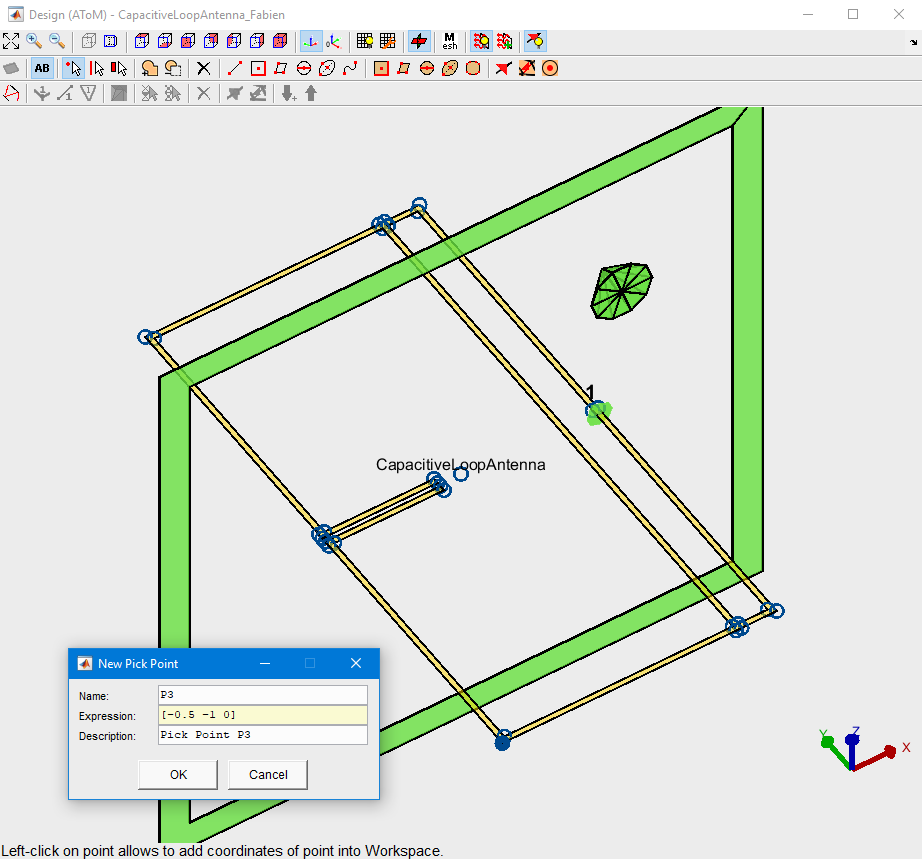

AToM Design Viewer with a capacitive loop antenna and active pick-point tool. The PEC symmetric plane is enabled and highlighted by green color.

AToM DesignViewer

Draw the antenna interactively, visualize mesh grid, feeding scenarios, and boundary conditions. Take the advantage of AToM Workspace.

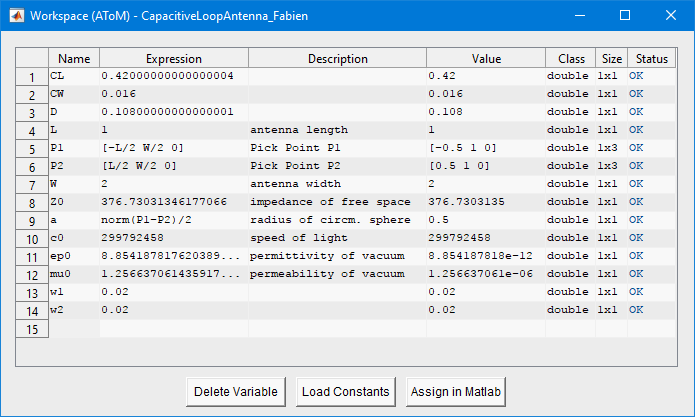

List of user-defined AToM variables which parametrize the capacitive loop antenna.

AToM Workspace

Create own variables and use them freely throughout the AToM to parametrize all your models. AToM Workspace is the primary gateway between variables in MATLAB workspace and AToM.

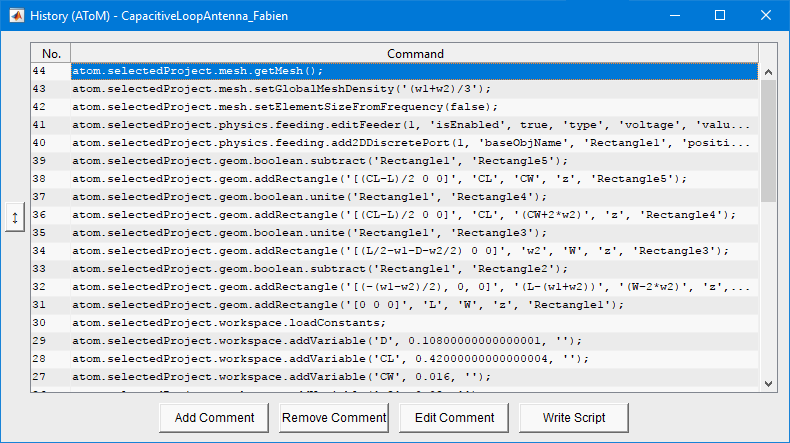

Record of AToM History for capacitive loop antenna.

AToM History

Rely on automatic MATLAB-executable record of your AToM session. Modify it, send it, share it.

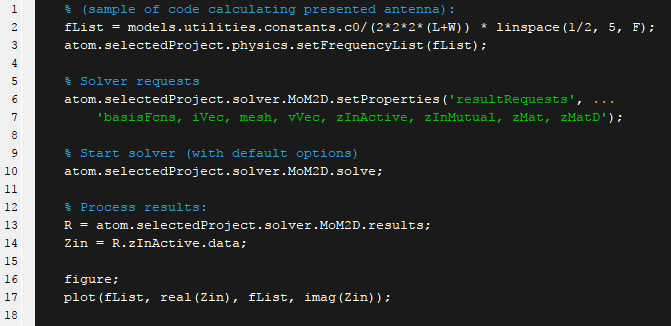

A segment of MATLAB code with AToM-executable commands (start of MoM solver and acquisition of the results).

AToM Syntax

Have a full control of the AToM workflow. Access all powerful low-level functions and features. Combine freely AToM commands and other MATLAB commands.

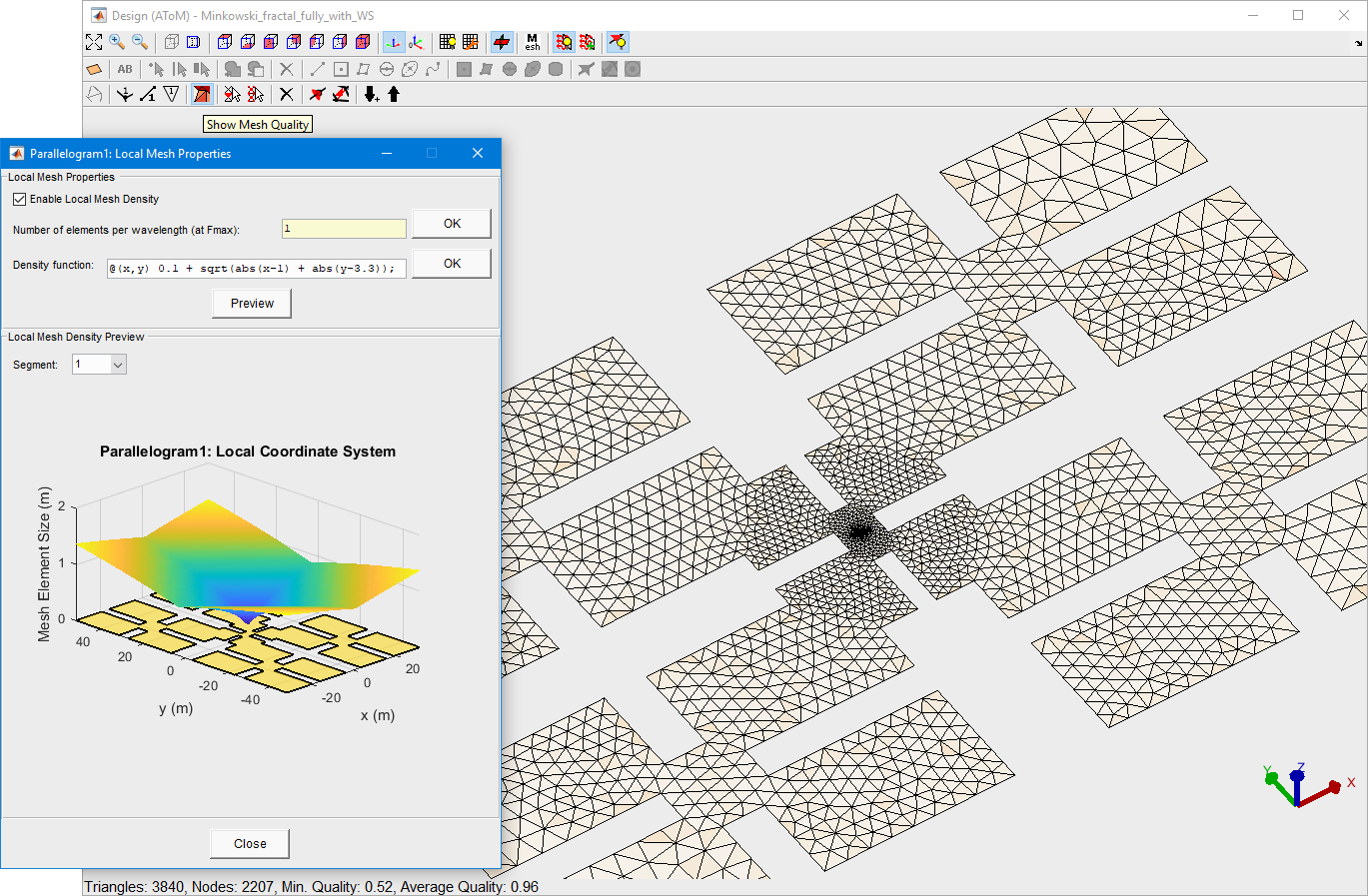

Complex fractal body discretized using local density function (discretization is finer where high amplitudes of current density are expected).

Advanced Mesher

Use fast and versatile AToM mesher. Set up local density functions. Enjoy various settings of uniform mesh grid and full support of symmetries.

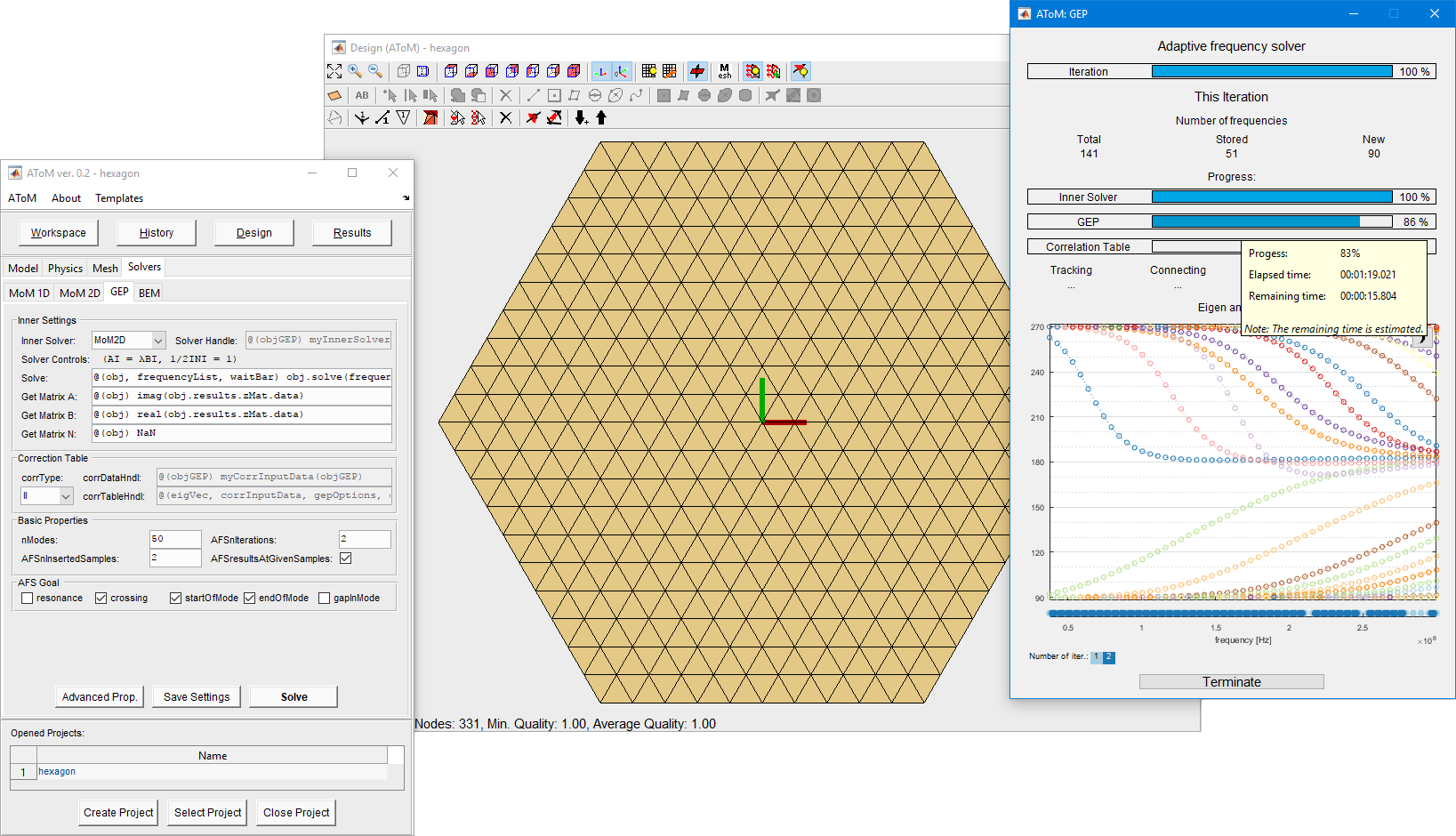

Characteristic mode decomposition of hexagon with perfectly symmetrical mesh grid.

GEP With Extended Support For CMs

Try out the far most advanced characteristic modes decomposition package. Adaptive tracking, accurate decomposition, symmetry based-tracking, scalable GEP definitions... all at your disposal.

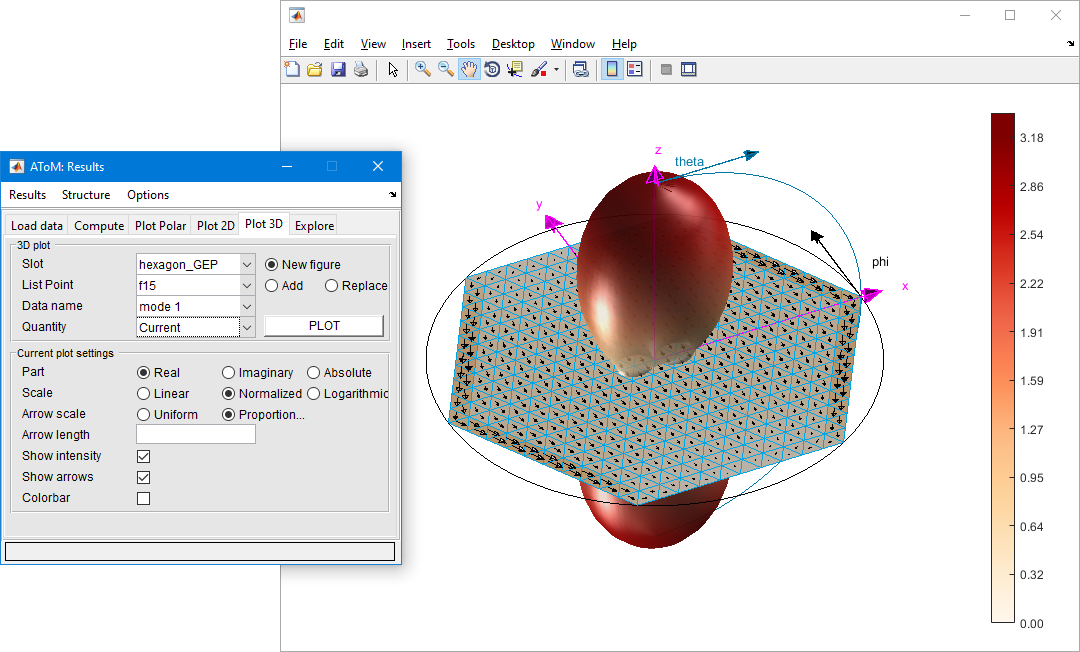

Radiation pattern of dominant characteristic mode on hexagon.

Results Browser

Analyze your results swiftly with standalone AToM Results Browser or dig directly into the deep study with underlying elementary functions.

... and more

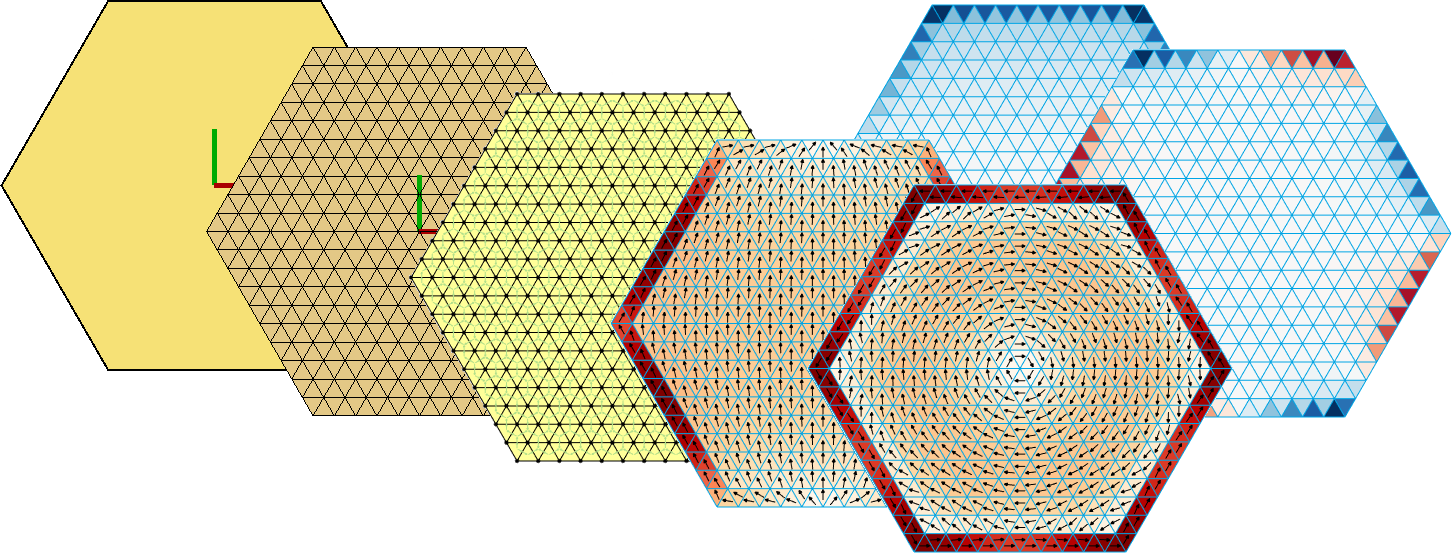

From antenna body, through discretization grid and definition of basis functions to characteristic modes...

AToM Addons

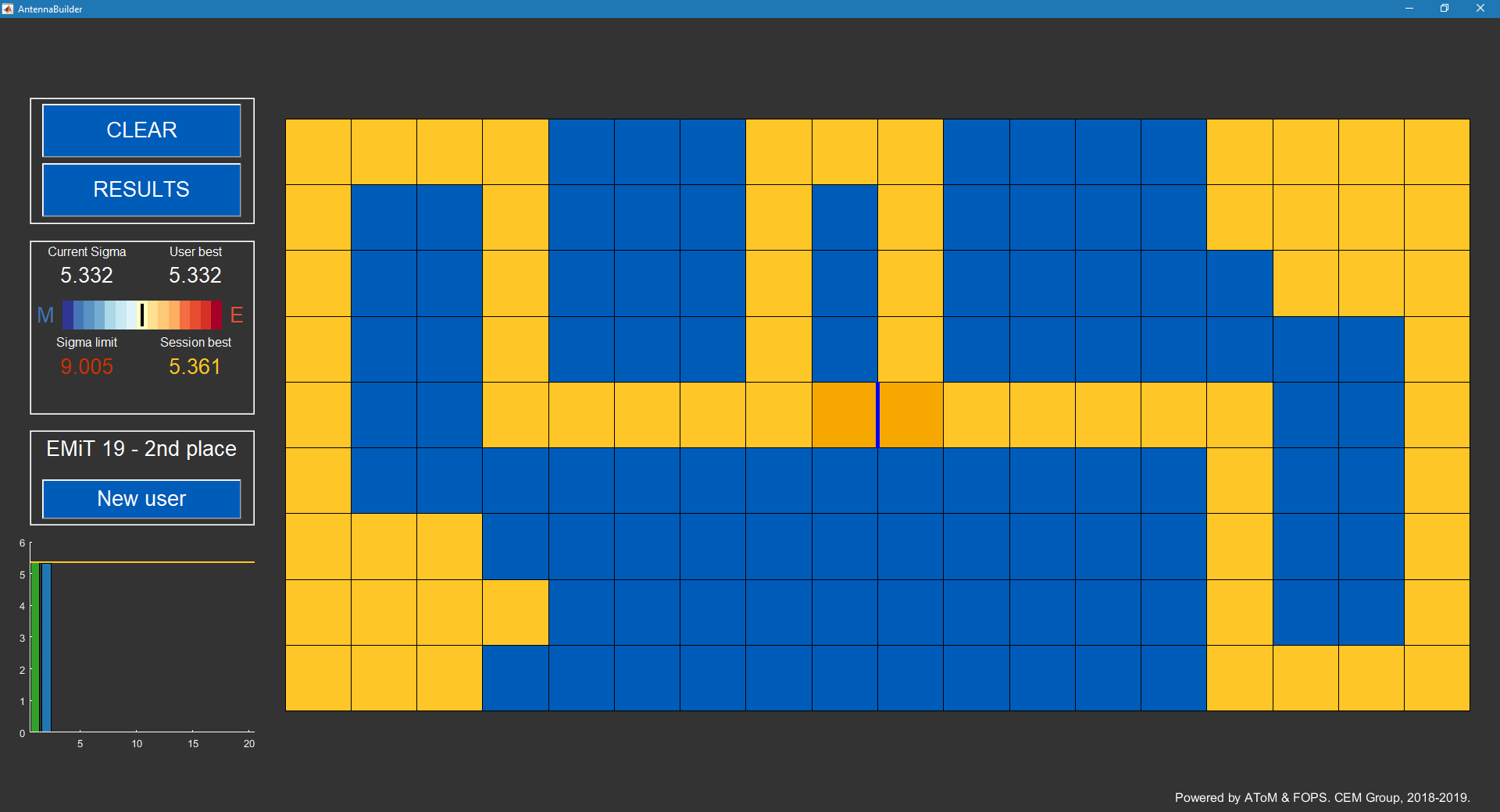

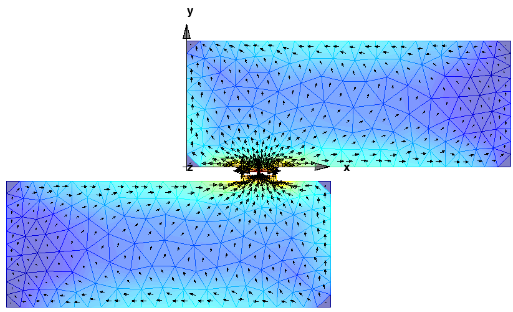

A particular solution drawn in AntennaBuilder to maximize effective area of a receiving antenna.

Antenna Builder

Addon for AToM with easy controllable interface to design planar antenna structures. Various figure of metrics can be evaluated and optimized.

More about and download Antenna Builder...
Version 1.0
Requirements: AToM

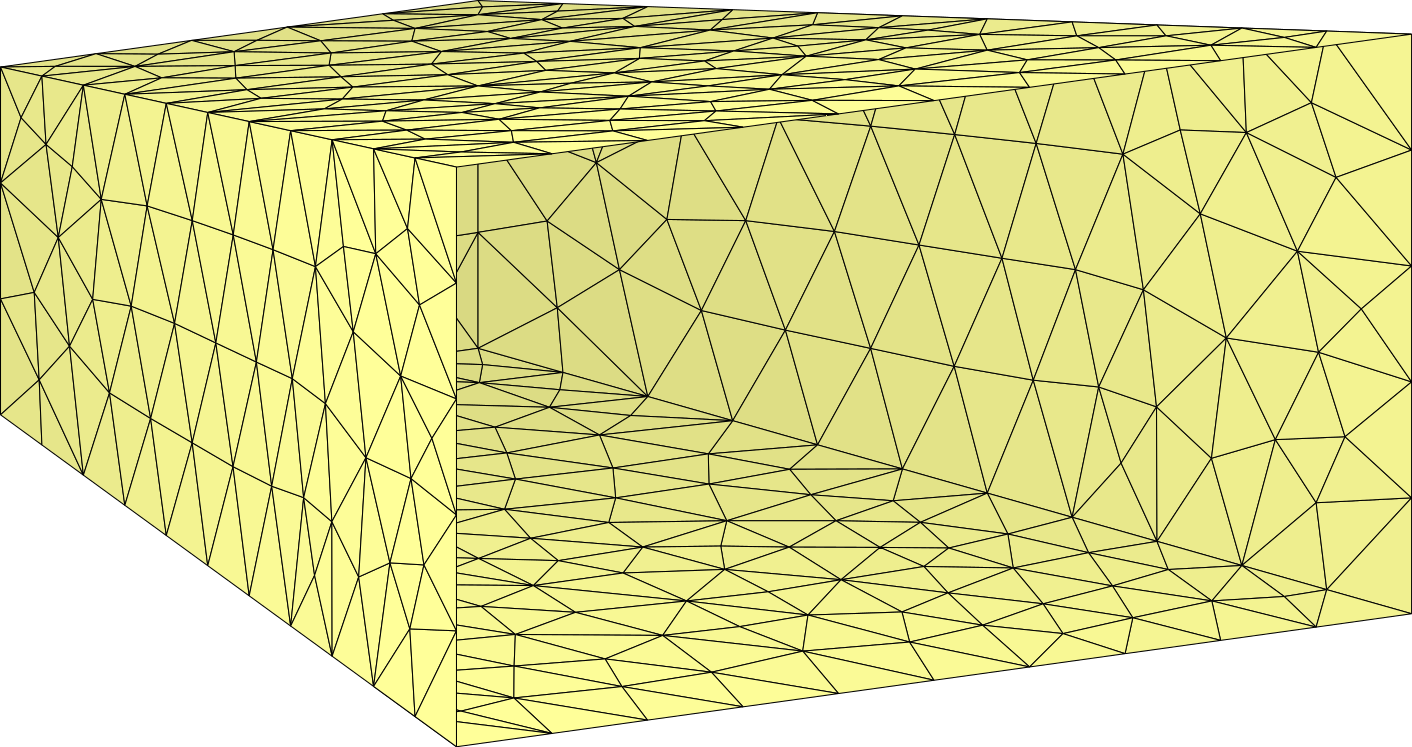

Delaunay mesh grid of a horn antenna exported as vector graphics into LaTeX/TikZ and compiled as PDF.

AToM2TikZ

AToM2TikZ is a package for conversion of MATLAB plots generated by AToM into LATEX/TikZ macros. The strategy used to generate the plots is similar as for Matlab2TikZ package. AToM2TikZ can generate vector graphics for mesh grids, current plots, charge plots, radiation patterns, topology sensitivity samples, etc.

More about and download AToM2TikZ...
Version 1.0
Requirements: AToM

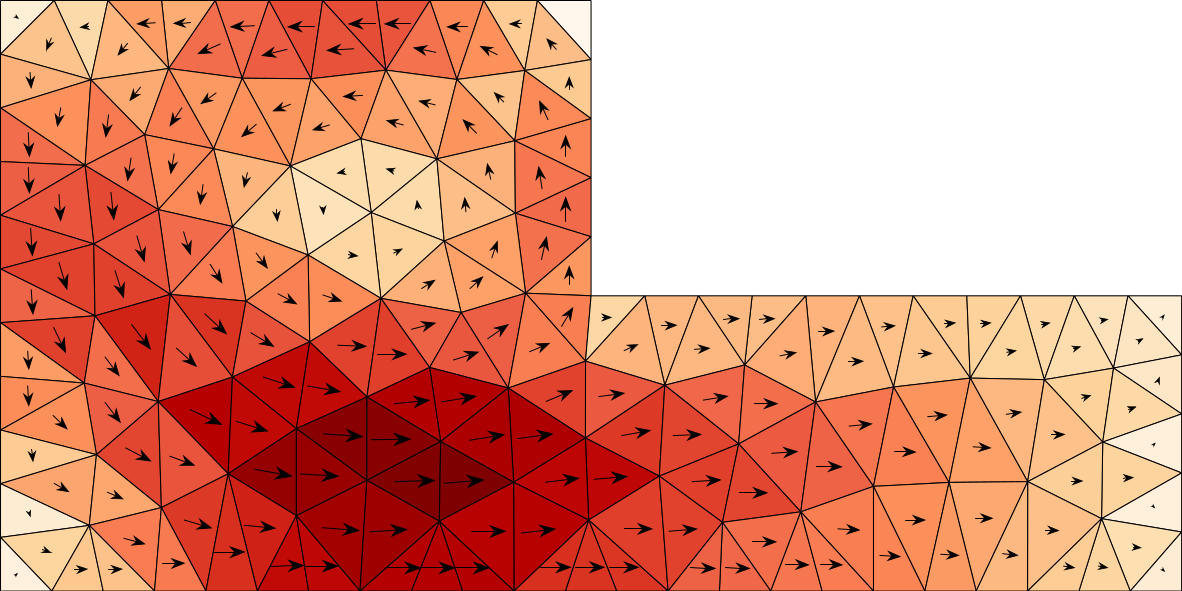

Optimal current for maximal radiation efficiency with self-resonant constraint. L-shape plate is made of copper, electrical size is ka=1/2. Graphical results exported with AToM2TikZ addon.

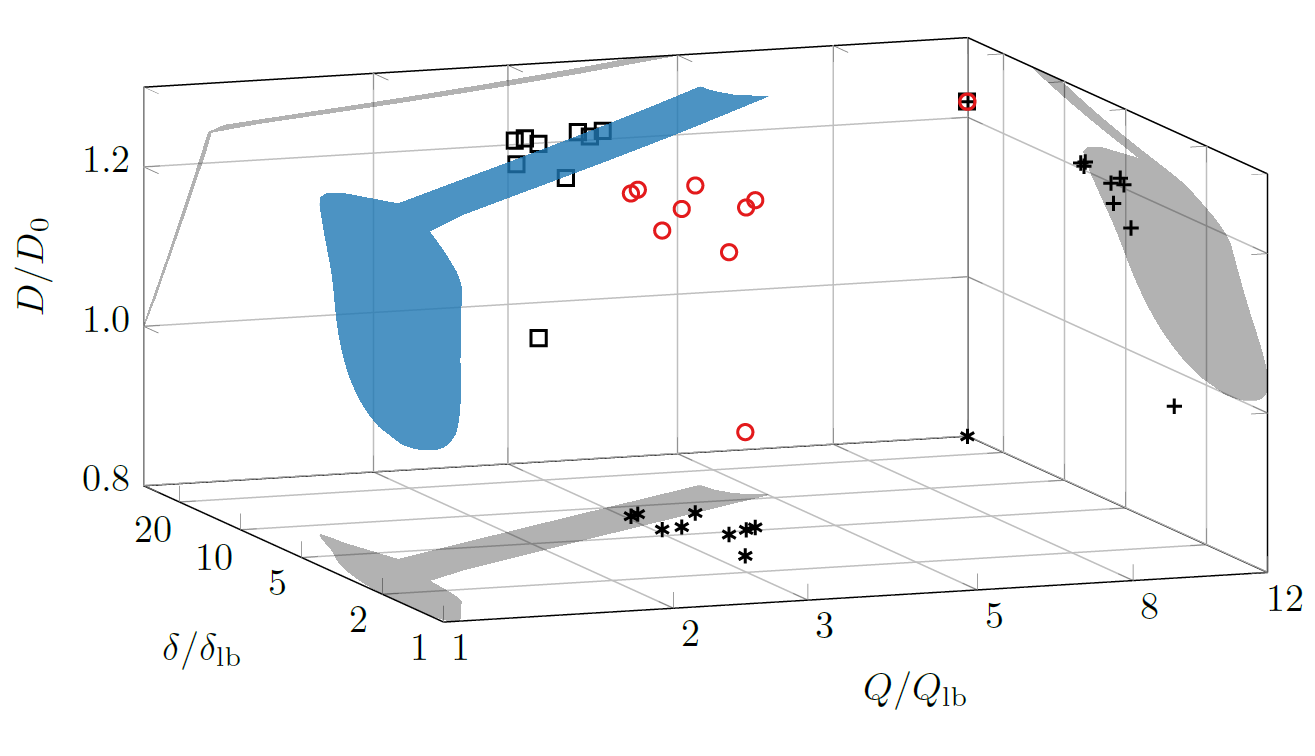

Fundamental Bounds

FunBo is a package for the computation of physical limitations on selected electromagnetic metrics based on linear or quadratic forms. A typical workflow contains definition of the optimization problem, evaluation of required method-of-moments (MoM) matrices, and initialization of an appropriate solver. AToM can be used to compute the matrices, utilizing either volumetric MoM or surface equivalence MoM. Many standard optimization problems (e.g., minimum Q-factor, maximum radiation efficiency, maximum gain) are already implemented in the package as examples. The package also allows to setup partial control over the total degrees of freedom using separation into the controllable and uncontrollble regions. Current examples are based on AToM functions evaluating the MoM matrices, however, the core functions of the package are standalone and can be also used with user supplied matrices.

More about Fundamental Bounds...
Version 1.0
Requirements: AToM

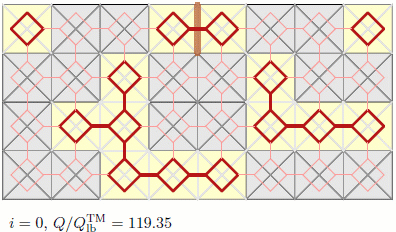

Gradient-based topology optimization of a PEC rectangular plate for minimization of radiation Q-factor. The electrical size is ka=1/2. Optimization has been slowed down approximately 1000 times.

Topology Optimization

More about Topology Optimization...
Not available yet
Requirements: AToM, FOPS

VOlumetric Method of Moments

Comming soon...

Download

The free version can be downloaded here. Visit download for more information.

Changelog

Documentation

AToM Documentation
(PDF, 4.69 MB)
version from Mar 23, 2020

AToM Features
(PDF, 895.12 kB)
version from Mar 27, 2020

AToM Functions
(PDF, 809.86 kB)
version from Mar 23, 2020

AToM Operators
(PDF, 481.75 kB)
version from May 24, 2021

Live Scripts

LS1: Meanders
(ZIP, 355.85 kB)
version from Jun 18, 2019

LS2: Symmetries
(ZIP, 364.01 kB)
version from Jun 10, 2020

White Papers

Analysis of dual-PIFA antenna polarization diversity
(PDF, 466.64 kB)
version from Oct 08, 2018

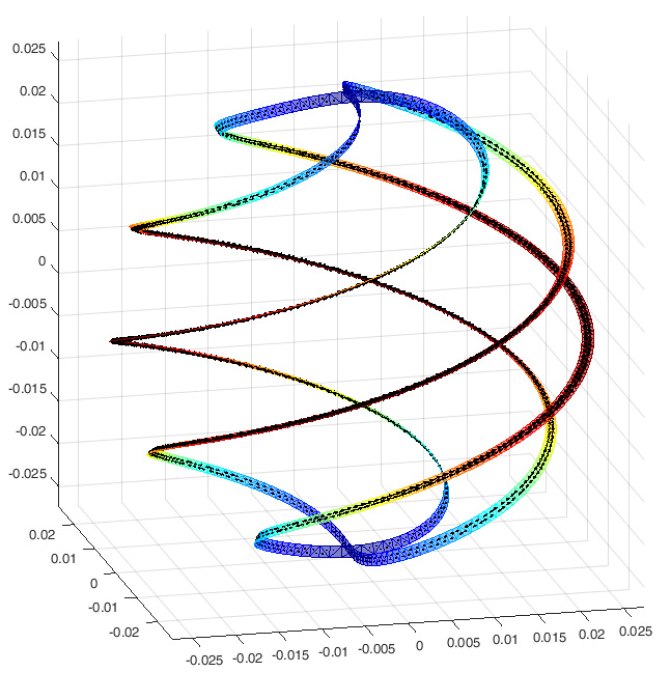

Analysis of four-arm electrically small helix antenna
(PDF, 420.04 kB)
version from Oct 08, 2018

Design of circularly polarized antenna
(PDF, 1.2 MB)
version from Oct 08, 2018

Fundamental Bounds to Time-Harmonic Quadratic Metrics in Electromagnetism: Overview and Implementation
(PDF, 1.08 MB)
version from Dec 16, 2023
